NI-ALLOY03
GY-MESH
7314140000

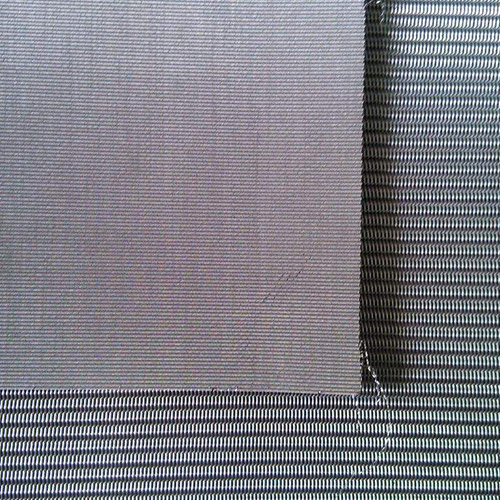

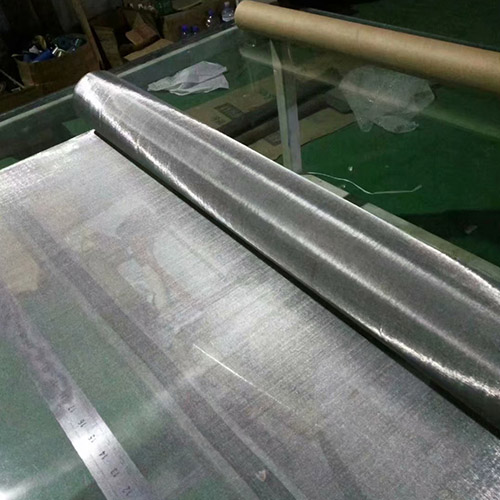

Inconel wire mesh is a nickel-chromium alloy mesh with excellent resistance to carburizing corrosion, pitting and crevice corrosion, stress corrosion and oxidation resistance.It is resistant to many corrosive media, such as organic, inorganic compounds, acids and bases.
Features and Applications of Inconel Wire Mesh
Inconel wire mesh is considered a super alloy wire mesh and a special gold mesh with special applications.
Inconel wire mesh is corrosion resistant and therefore suitable for some extreme environments.It is also resistant to oxidation and can withstand high temperatures. When exposed to heat, Inconel alloy forms a layer that protects the surface from heat and other damage.Not only is it heat resistant, it also retains its strength when heated.
Its high temperature strength depends on solid solution strengthening or precipitation strengthening, depending on the type of alloy. This material is also pressure resistant, making it ideal for extreme applications
Because of these characteristics, Inconel wire mesh can be used in a variety of applications, including seawater applications.It is also widely used in the following areas:
Petrochemical products
aerospace
Hydropower
nuclear power
Refinery
Shipyard
Onshore and offshore oil and gas exploration
Pulp and paper
Chemical Fiber
Equipment
Classfication of Hastelloy Wire Mesh
Inconel 600 wire mesh (UNS N06600) is ideal for use in high temperature environments (up to 2150 ° F), which also poses a threat of oxidation, reduction and corrosion.High nickel and chromium content results in excellent resistance. Due to these characteristics, they are usually designated for nuclear steam generator equipment, heat treatment equipment and furnaces,It is also used in electronic components as well as in chemical and food processing.
Inconel 601 wire mesh (UNS N06601) Inconel 601 has excellent oxidation resistance and other forms of high temperature corrosion by adding aluminum.It also has high mechanical properties at high temperatures. Heat treatment equipment for industrial furnaces, baskets, muffle furnaces and re, petrochemical and other processing equipment, and gas turbine components.
Inconel 617 wire mesh (UNS N06617) is a nickel-chromium-cobalt-molybdenum alloy that has an excellent combination of metallurgical stability, strength and oxidation resistance at high temperatures.
It shows corrosion resistance to various aqueous solutions. Commonly used in aircraft, pipeline, gas turbine, chemical processing, combustion tank and industrial furnace components
Inconel 625 wire mesh (UNS N06625) maintains its strength and toughness over a wide range of operating temperatures from low temperatures to 1800 ° F.This nickel-chromium-molybdenum alloy has excellent fatigue strength, good oxidation resistance and corrosion resistance.Used in nuclear reactors, ash pit sealing, marine equipment, fuel nozzles, afterburners, and chemical and pollution control equipment.
Inconel 718 wire mesh (UNS N07718) is suitable for temperatures ranging from -423 ° F to 1300 ° F and has excellent oxidation resistance up to 1800 ° F.Suitable for jet engines, fuel components, pump parts, nuclear fuel components and hot extrusion applications.
Inconel 725 wire mesh (UNS N07750) is similar to Inconel 600, but the precipitation is hardened by adding aluminum and titanium.Inconel X750 has good corrosion and oxidation resistance, and has high tensile and creep fracture properties around 1300ºF.It has excellent sag resistance and can be used in high temperature applications. Used in gas turbines, rocket engines, nuclear reactors, pressure vessels, tools and aircraft structures.
Incoloy 800 wire mesh (UNS N08811) is a nickel-iron-chromium alloy mesh with good strength and excellent oxidation and carburization resistance in high temperature environments up to 1100 degrees Fahrenheit.
It also resists corrosion in many aqueous environments. The low carbon content helps prevent sensitization and consequent intergranular corrosion in the welding HAZ. Used in flue gas scrubbers and for treating phosphoric and sulfuric acids.
Incoloy 825 wire mesh (UNS N08825) This is a nickel-iron-chromium alloy mesh with molybdenum and copper added. It has excellent resistance to reducing and oxidizing acids, stress cracking, and local corrosion (such as pitting and crevice corrosion).Incoloy 825 is particularly resistant to sulfuric acid and phosphoric acid. Commonly used in chemical processing, pollution control equipment, oil and gas well pipelines, nuclear processing, acid making and pickling equipment.
Weave Term of Inconel Wire Mesh:
Plain weave ,Twilled weave,Dutch weave, Welded weave, Knitted Weave,Crimped weave.
Chemical Composition of Inconel Wire Mesh
Certifiction (Inconel Alloyy) | |||||||||||
Inconel Alloy | Chemical Composition
| ||||||||||
ALLOY | UNS/ASTM | Ni+Co | Cr | Fe | Al | Ni+Co | Mo | Nb+Ta | C | Cu | Ti |
600 | N06600 | 72% min | 14.0-17.0% | 6.0-10.0% | |||||||
601 | N06601 | 58.0-63.0 | 21.0-25.0 | Balance | 1.0-1.7 | ||||||
617 | N06617 | 44.5 | 20.0-24.0 | 3 max | 10-15 | 8-10 | |||||
625 | N06625 | 61 | 21.5 | 9 | 3.6 | ||||||
718 | N07718 | 52.5 | 19 | 18.5 | 3.0 | 3.6 | |||||
800 | N08811 | 32.5 | 21.0 | Balance | 0.10 Max | ||||||
825 | N08825 | 38-46 | 19.5-23.5 | 22min | 2.5-3.5 | 1.5-3 | |||||
800H,HT | N08810 & UNS N08811 | 30-35 | 19-23 | 39.5 approx | 0.06-0.1 | ||||||
X-750 | N07750 | 70% min | 14-17 | 5-9 | 70% min | 2.25-2.75 |
Mechanical properties of Inconel Wire Mesh
Certifiction (Inconel Alloyy) | |||||
Inconel Alloy | Mechanical properties
| ||||
ALLOY | UNS/ASTM | Tensile Strength | Elongation | Melt | Max. Operating Temperature |
600 | N06600 | 110 Kpsi | 30 | 2540° F | 2150° F |
601 | N06601 | 110 Kpsi | 34 | 2494° F | 2100° F |
617 | N06617 | 116 Kpsi | 32 | 2500° F | 2150° F |
625 | N06625 | 155 Kpsi | 35 | 2350° F | 2150° F |
718 | N07718 | 140 Kpsi | 40 | 2400° F | 1800-2000° F |
800 | N08811 | 110 Kpsi | 30 | 2500° F | 1900° F |
825 | N08825 | 115 Kpsi | 30 | 2525° F | 1900-2000° F |
800H,HT | N08810 & UNS N08811 | 110 Kpsi | 32 | 2500° F | 1900° F |
X-750 | N07750 | 125 Kpsi | 40 | 2540° F | 1300° F |
