Availability: | |
---|---|
Quantity: | |
NI-ALLOY02
GY-MESH
7314140000

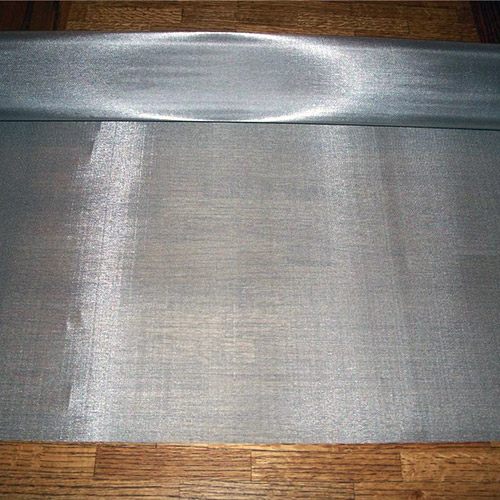

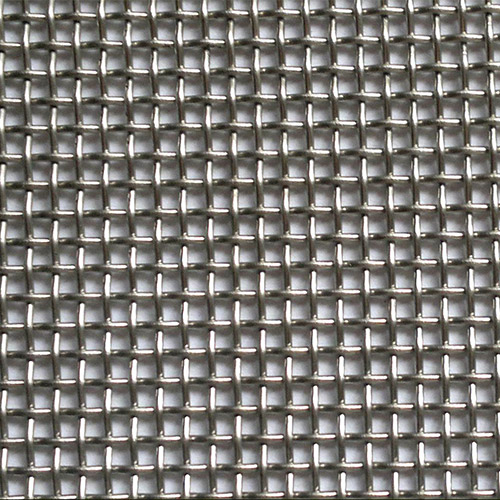

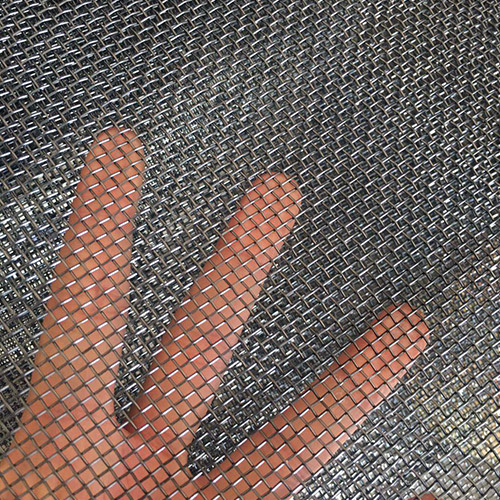

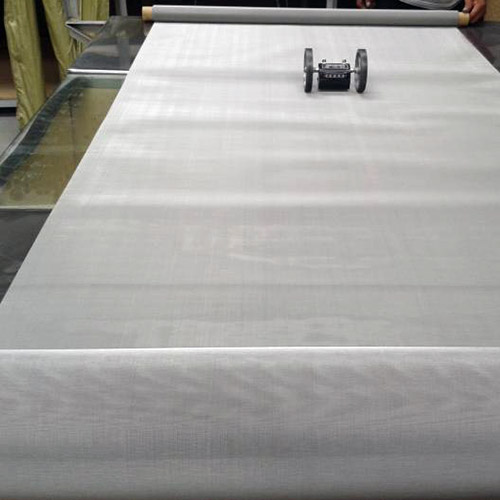

Monel 400 Wire Mesh
Monel wire mesh is a nickel-copper alloy that has good resistance in various corrosive environments.

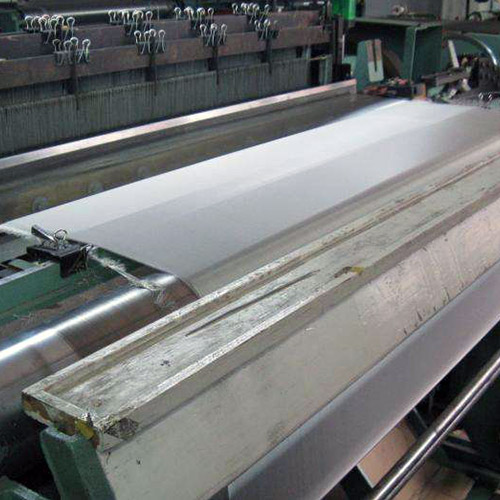

The most commonly used Monel alloy in industry is UNS N04400 Monel Alloy 400, whose main ingredients are 67% nickel and 31% copper.Monel wire mesh is drawn from wire to a specific wire diameter, and then woven into some specific wire mesh. Monel 400 wire mesh is mainly used in aerospace, aviation, chemical and hydrocarbon processing equipment.
Features of monel 400 wire mesh
1, Monel 400 alloy (UNS N04400 or MCu-28-1.5-1.8 or Ni68Cu28Fe) is a kind of seawater, chemical solvent, ammonia sulfur chloride, hydrogen chloride, various acid media such as sulfuric acid, hydrofluoric acid, hydrochloric acid, phosphoric acid, Organic acid, alkaline medium, salt and molten salt nickel-based alloy material with good corrosion resistance. But it cannot be used in nitric acid
2, very suitable for oxidation-resistant pitting and crevice corrosion.
3. The maximum operating temperature is 1000 ° F. High temperature corrosion: The maximum temperature for continuous operation of M400 in air is generally around 600 ° C. In high temperature steam, the corrosion rate is less than 0.026mm / a.
Ammonia: Due to the high nickel content of Monel 400 alloy, it is resistant to corrosion under anhydrous ammonia and ammoniated conditions below 585 ° C.
4. Can be cut, shaped and welded.
Applications of Monel 400 Wire Mesh
Ocean
Naval shipyard
Chemistry
Aerospace
Nuclear Industry
With few exceptions, non-industrial users seldom choose Monel wire mesh because of its high price and similar to stainless steel. But it can be used for commercial cooking, filtering, boiling, refining, defogging and desalting.
Weave Term of monel 400 wire mesh:
Plain weave ,Twilled weave,Dutch weave, Welded weave, Knitted Weave,Crimped weave.
Choosing Your Monel wire mesh
The corrosion resistance of Monel K500 is basically the same as that of Monel 400 alloy.
Therefore, the corrosion resistance data of Monel 400 can be completely applied to Monel K500.
Monel K500 (K500, NCu30-2-1, UNS N05500) alloy has the same corrosion resistance as Monel 400
in addition to its excellent mechanical properties such as high strength, corrosion resistance and non-magnetism.
Gaoyuan's monel wire mesh
Gao Yuan Company is a Monel wire mesh, bolting cloth, milling cloth, and filter cloth factory and distributor in China.
I can produce Monel wire mesh according to customer's requirements.In addition, we can sinter, punch, and cut Monel wire mesh.

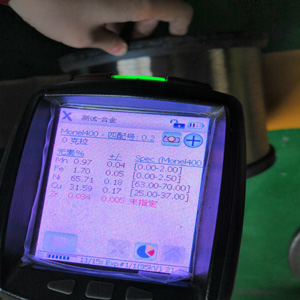

Chemical Composition of monel 400 wire mesh
Certifiction (Monel Alloy) | |||||||||
Monel Alloy | Chemical Composition | ||||||||
ALLOY | UNS/ASTM | C | Mo | S | Si | Ni | Cu | Fe | |
400 | N04400 | 0.3max | 2.0max | 0.024max | 0.5max | 63.0min | 28min-34max | 2.5max |
Mechanical properties of monel 400 wire mesh
Certifiction (Monel Alloy) | |||||
Monel Alloy | Mechanical properties | ||||
ALLOY | UNS/ASTM | Tensile Strength | Elongation | Melt | Max. Operating Temperature |
400 | N04400 | 80 Kpsi | 30 | 2400° F | 1000° F |
